Overview

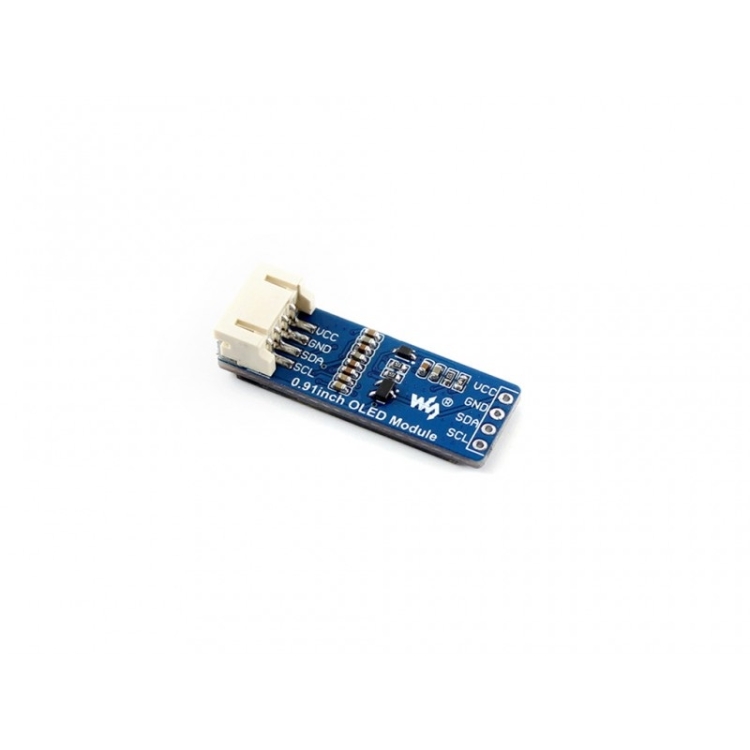

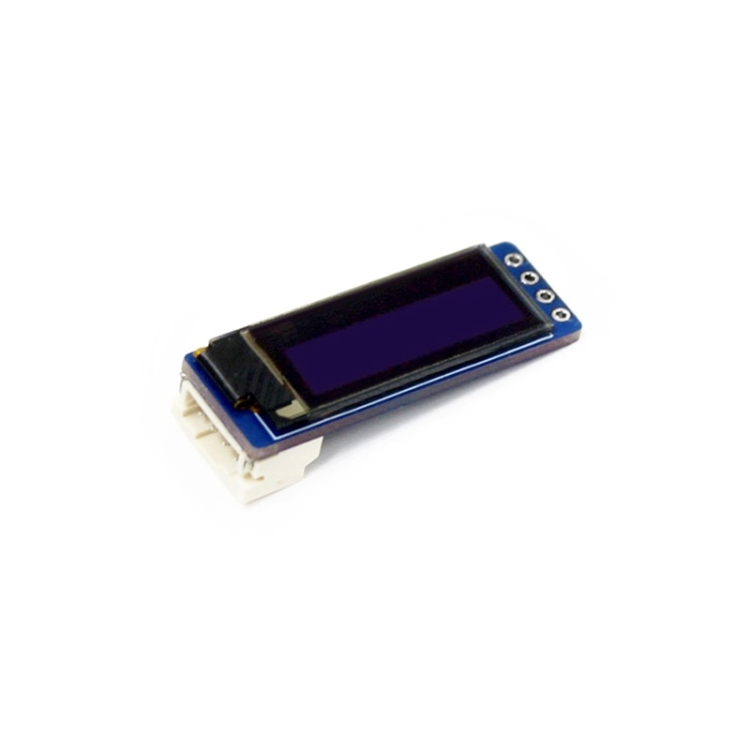

This is a general OLED display Module, 0.91inch diagonal, 128×32 pixels, with embedded controller, communicating via I2C interface.
Features
1. 0.91inch small form factor
2. 128×32 high resolution
3. I2C interface, requires only two signal pins
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Driver: SSD1306
2. Interface: I2C
3. Display color: White
4. Resolution: 128×32
5. Viewing angle: >160 degree
6. Operating voltage: 3.3V / 5V
7. Dimension: 36 x 12.5 (mm)
Package Contents
1. 0.91inch OLED Module x1
3. PH2.0 4Pin x1
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.04lb |
| One Package Size |
6cm * 4cm * 2cm / 2.36inch * 1.57inch * 0.79inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch |
| Loading Container |
20GP: 277 cartons * 2000 pcs = 554000 pcs
40HQ: 644 cartons * 2000 pcs = 1288000 pcs |
|
